Vehicle Tracking Unit

Security in a box

Basic TRACKING

  • India’s First Secure Socket Layer (SSL) Communication
  • Multi-Layer Board
  • One Year Replacement Warranty

INR 5200/-

*T&C Apply

Scroll Down

Basic Tracking

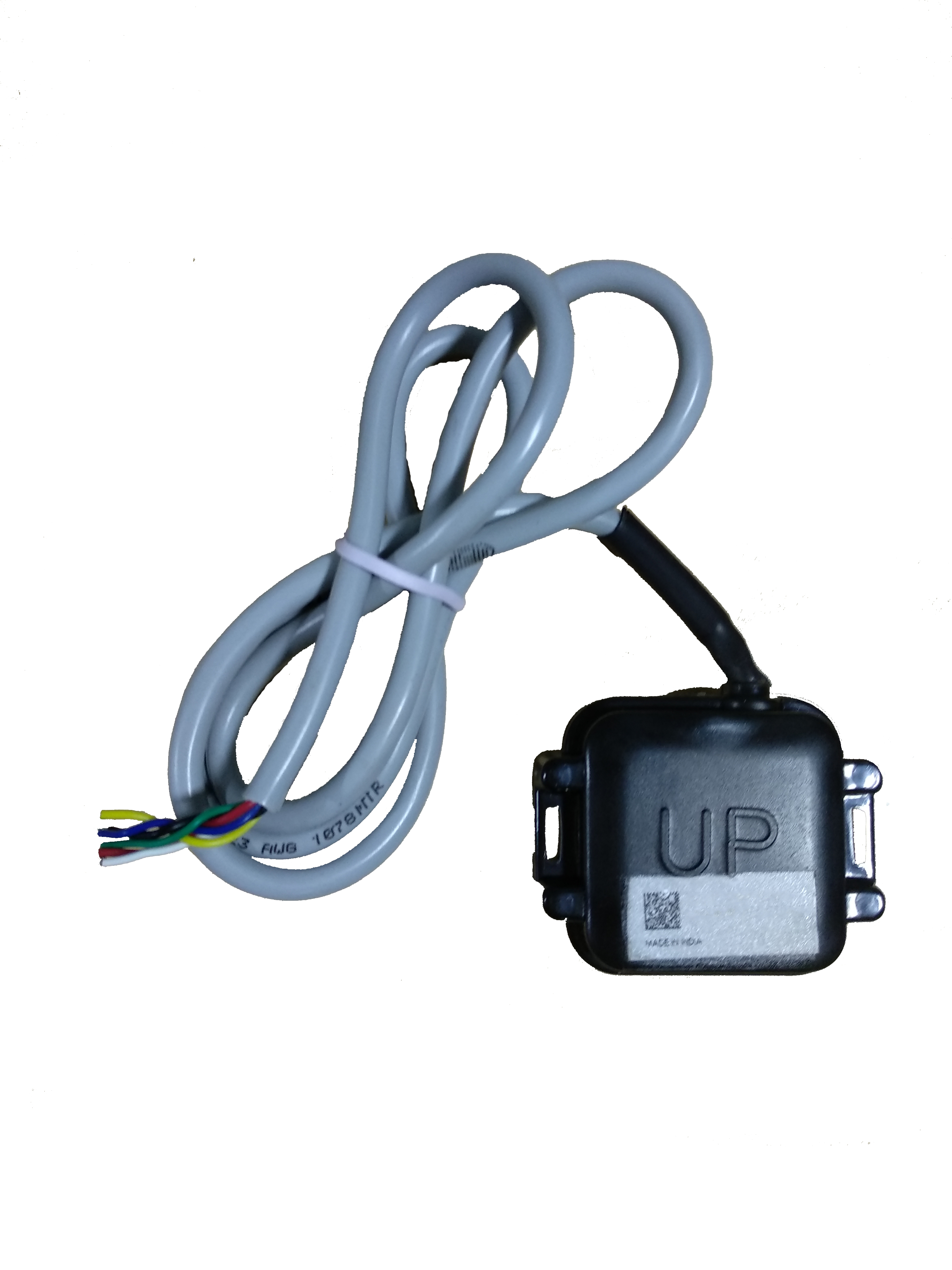

Vehicle Tracking Unit

The Vehicle Mounted Unit Tracker has an inbuilt GPS receiver and a GSM modem that transmits and receives location and configuration commands. This unit provides Real Time Location of the vehicle and can optionally be set for an update to 30 Seconds. The unit receives Latitude and Longitude information from the satellites and transmits positional information to the Tracking Server. The client can now view the position and additional information on a Map in Real-Time. The user can configure the unit using Over The Air commands and even optimize the transmission to achieve minimum Airtime costs.

Key Features

GSM SPECIFICATIONS

Quad-Band :

850/900/1800/1900MHz

GPRS Multi-Slot Class :

Class 12 (85.6 Kbps)

GPRS Mobile Station :

Class B

Output Power :

2W @ 850/900MHz
1W @ 1800/1900MHz

GNSS FEATURES

Position Accuracy :

<2.5m

Velocity Accuracy :

<0.1m/s

Acceleration Accuracy :

<0.1m/s2

Sensitivity :

Acquisition: -149dBm
Tracking: -167dBm
Reacquisition: -161dBm

SOFTWARE FEATURES

Protocols :

TCP, HTTP, HTTPS

Data Security :

Secure Sockets Layer (SSL) Communication,
Header Based Authentication

Data Format :

CSV, JSON

Storage :

2000 Packets (1 Day approx. @1min interval)

Configuration :

SMS, TCP, WEB, Bluetooth Console

Data Interval :

15sec (min) Different configuration allowed for Ignition On and Off State.

Alerts :

GPS First Fix, Overspeed, Ignition, Power Transit, Digital Input Change, Harsh Break/ Acceleration, Immobilizer Status, GPS Status, Firmware Update (*T&C)

GPS Info Provided :

Latitude, Longitude, GPS Fix, Speed, Satellites in View, Altitude, Direction, Accurate Odometer (software)

Firmware Update :

Auto, Manual

Remote Diagnosis :

Yes

HARDWARE FEATURES

Memory :

4MB (ROM) / 4MB (RAM)

Bluetooth :

3.0 (EDR)

LED Indicators :

GPS (RED), Network GSM/Data Transfer (Blue)

Battery :

500 mAh/3.7V Li-Po

Digital Input / Output :

2 / 1

Analog Input :

1

Operating Temperature :

-20°C ～ 65°C

Operating Humidity :

5% ～ 95%

Dimensions (mm) :

40.0(L)*40.0(W)*25.0(H)

Weight :

76g without battery, 108g with battery

ELECTRICAL SPECIFICATIONS

Operating Voltage :

7 – 45V DC

Current Consumption @12V :

60mA in Standby
98mA while Sending Data

Digital Input Range :

0 to 28 Volt DC

Analog Input Range :

0 to 28 Volt DC
Immobilizer Relay : 12v and 24 volt both (External Driver required)
